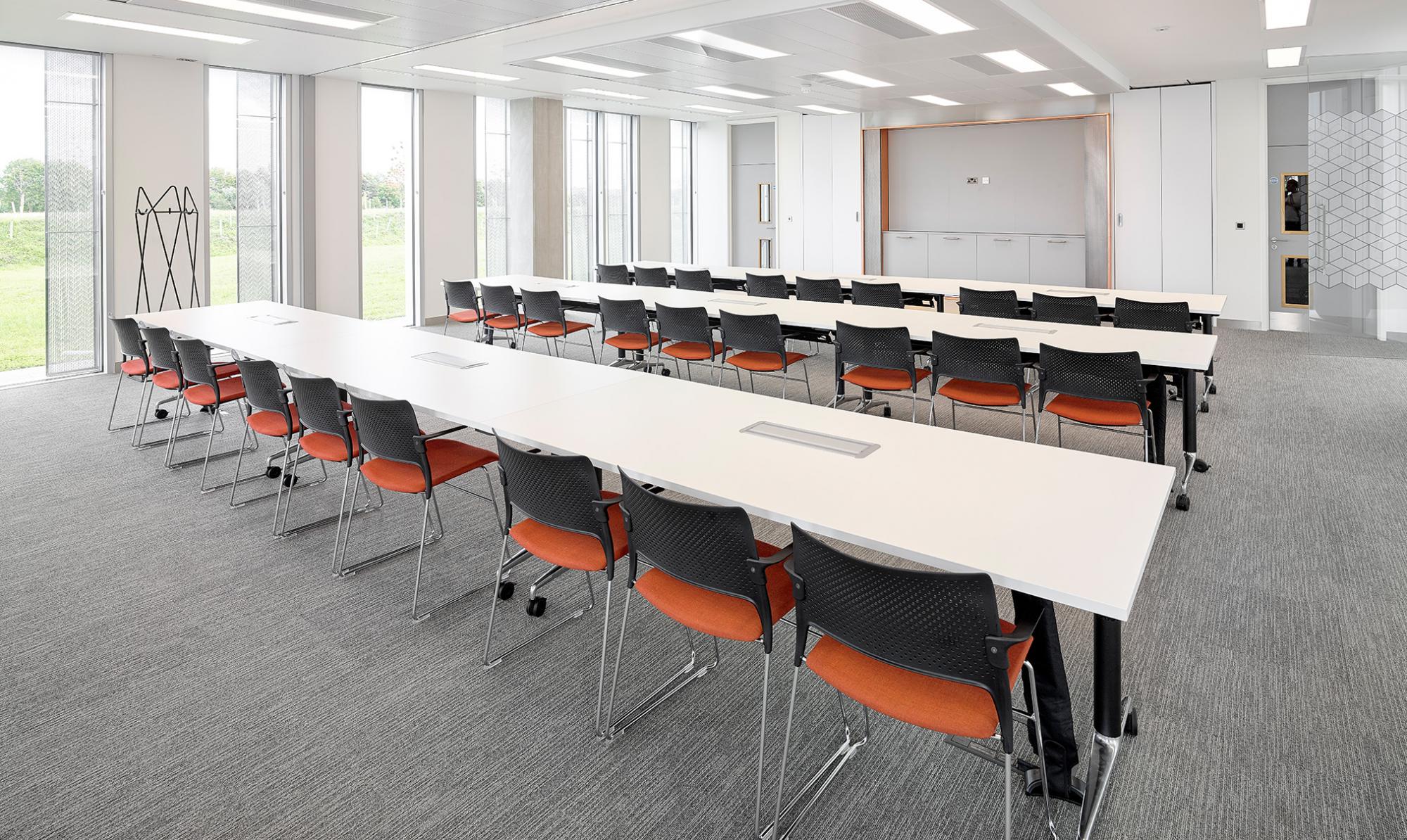

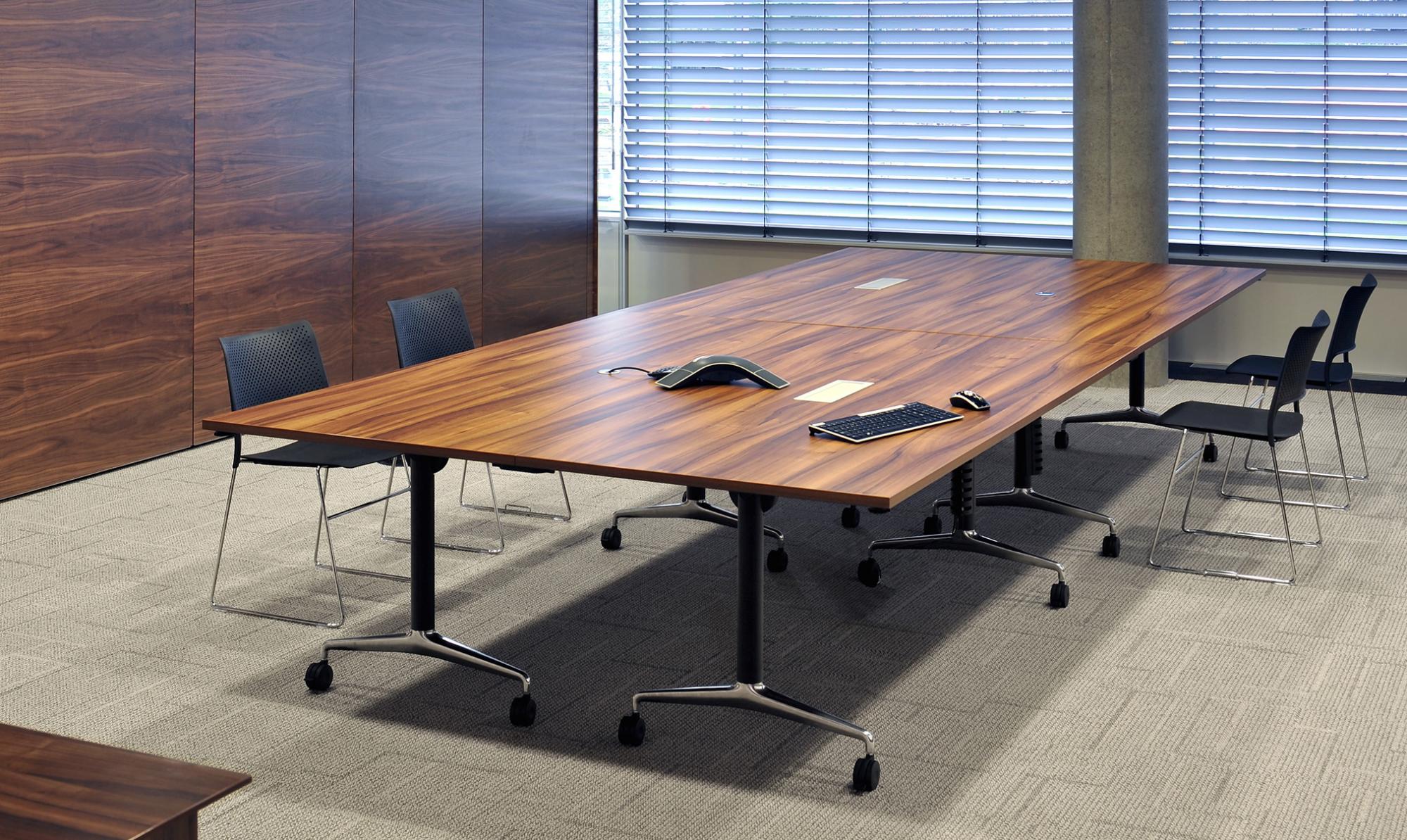

Increasingly, teaching and conference tables need to be more expansive, accommodating and flexible: Obvio active tables can adapt quickly in response to diverse needs.

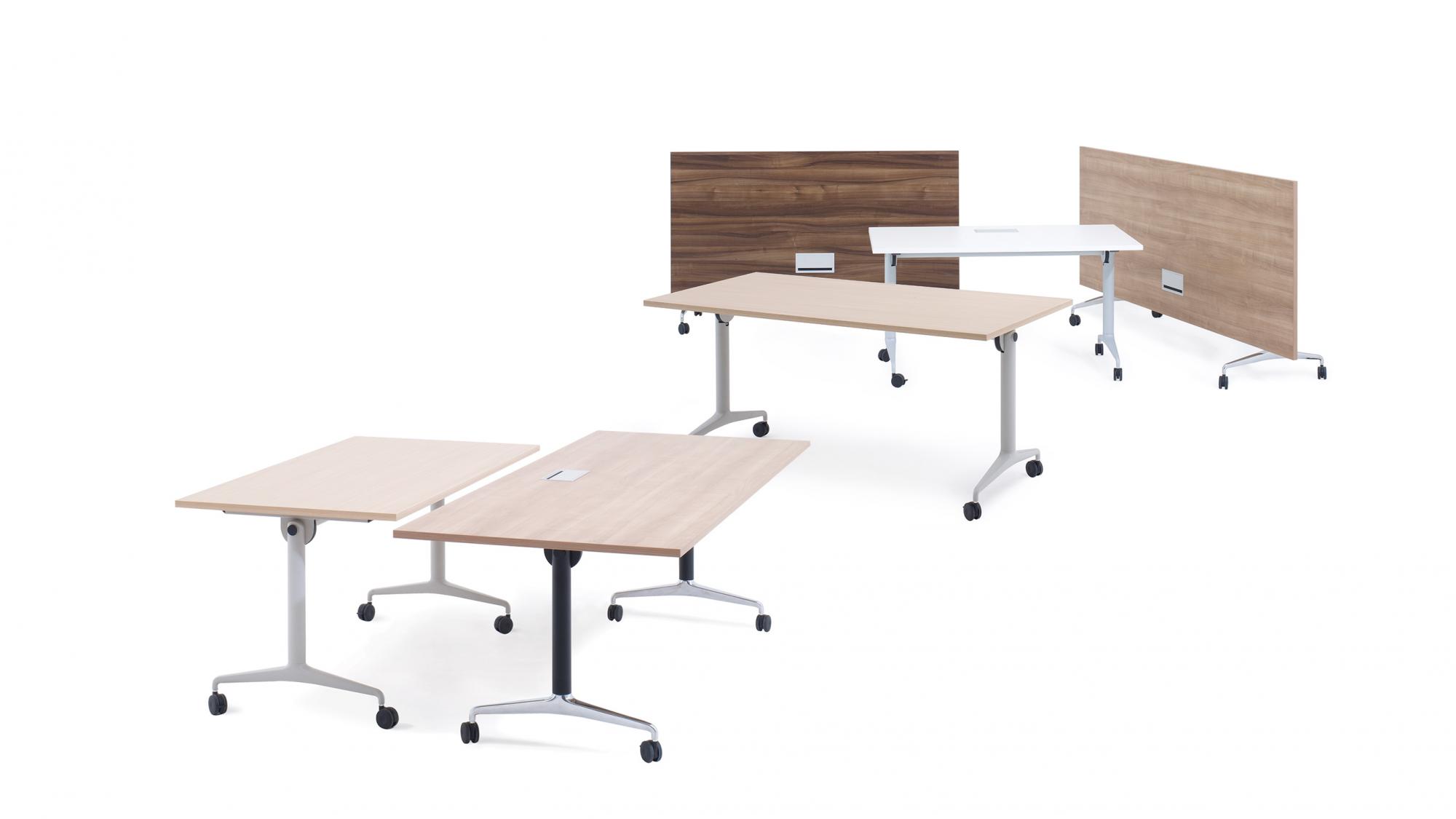

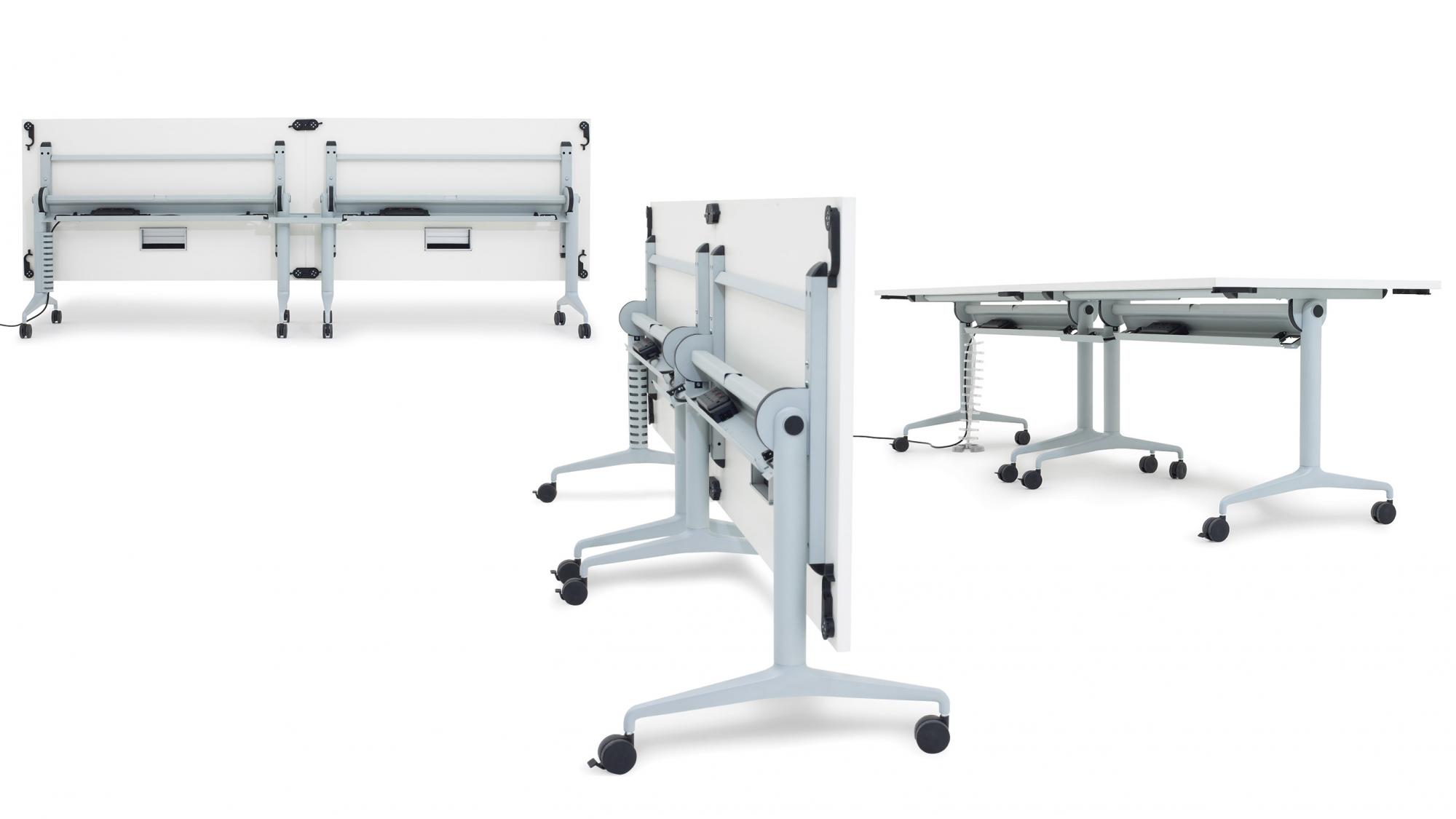

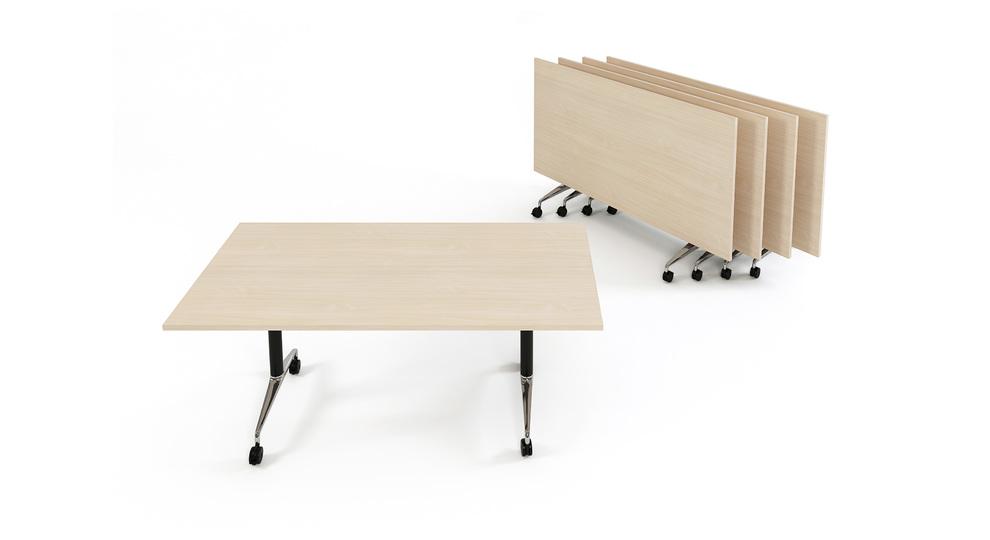

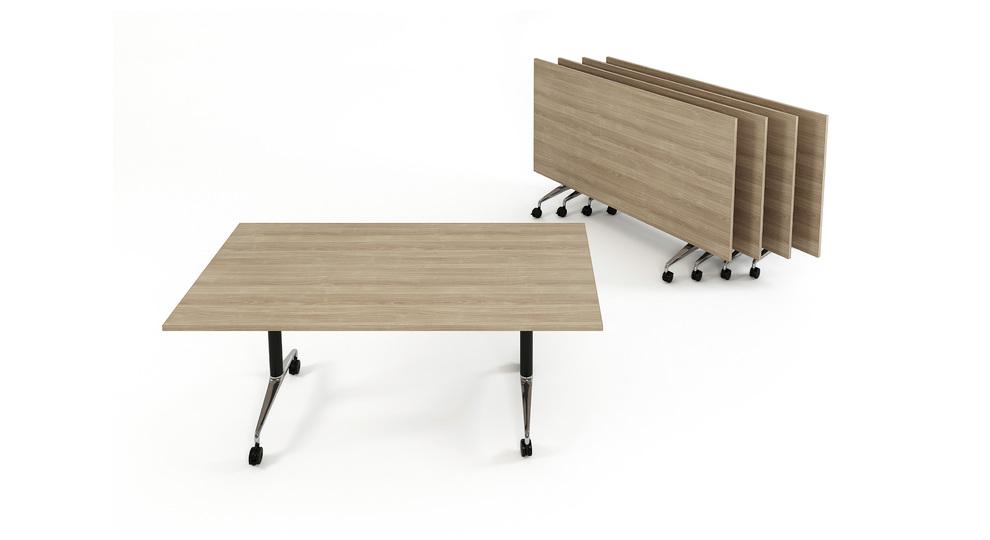

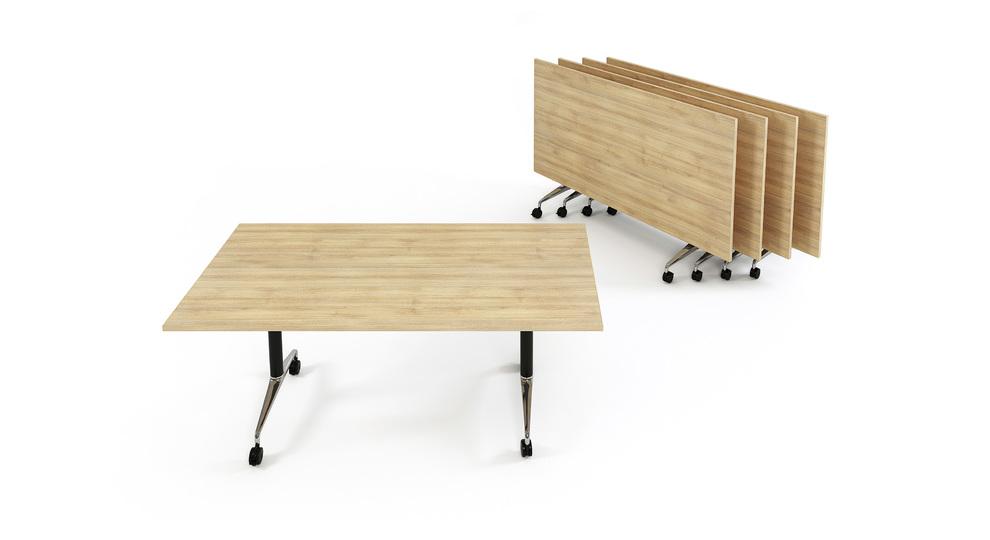

Smartworking’s Obvio tables allow for individual use and for small or large group configurations, with under-top moulded plastic clips enabling it to be quickly and easily reconfigured as required.
Power and data can be seamlessly integrated into the Obvio, and the most complex technological requirements can be configured with ‘plug-in & play’ simplicity.
When used in combination with Smartworking’s pods and screens, Obvio helps realise more effective, adaptable and diverse workspaces.
The Obvio family consists of 24 variants

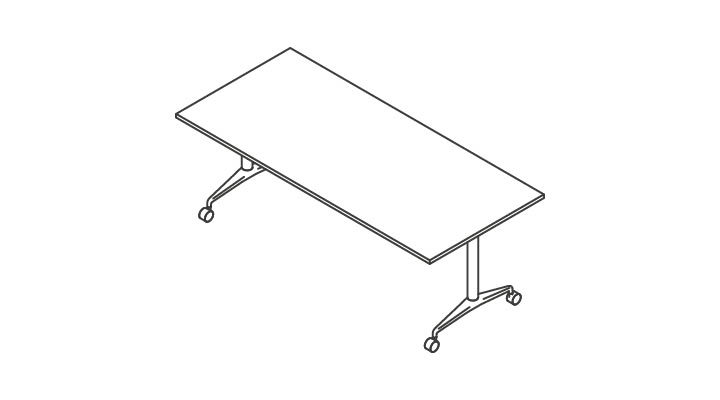

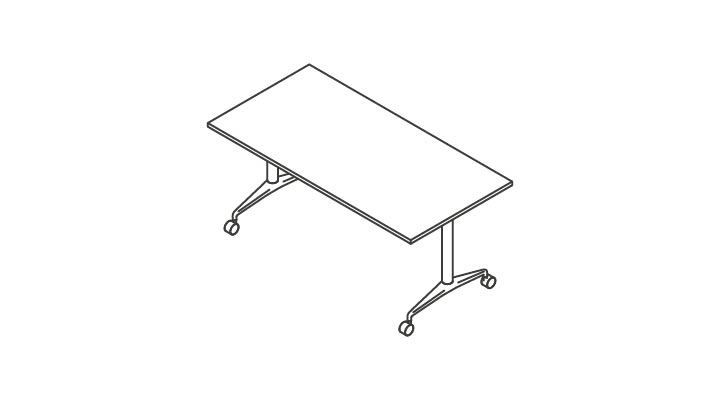

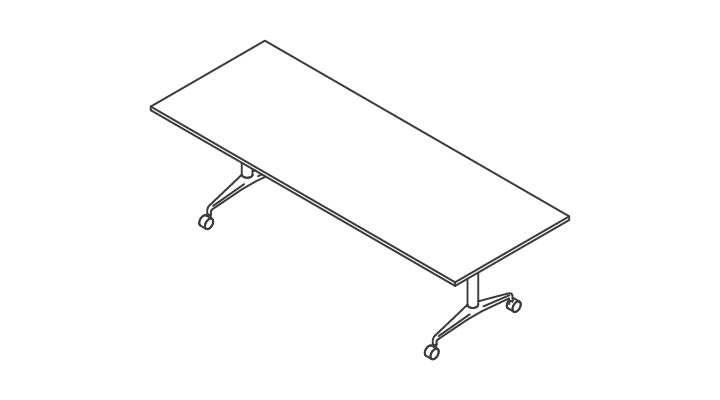

AC-01

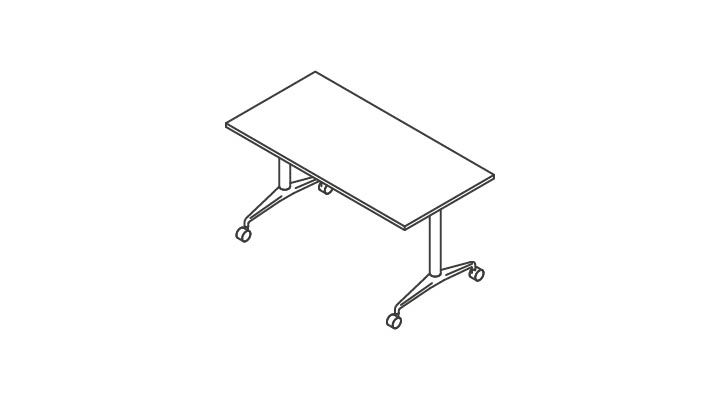

1400 x 700mm Rectangular Table
AC-02
1600 x 800mm Rectangular Table
AC-03
1800 x 900mm Rectangular Table
AC-04
2000 x 900mm Rectangular Table
AC-05
2200 x 900mm Rectangular Table
Standard Product Description
Edge Details:
Melamine Square Edge,
Melamine Chamfered Edge,
Laminate Square Edge,
Laminate Chamfered Edge,
Veneered Square Edge,
Veneered Chamfered Edge,
Veneered Deep Square Edge or
Veneered Solid Chamfered Edge.

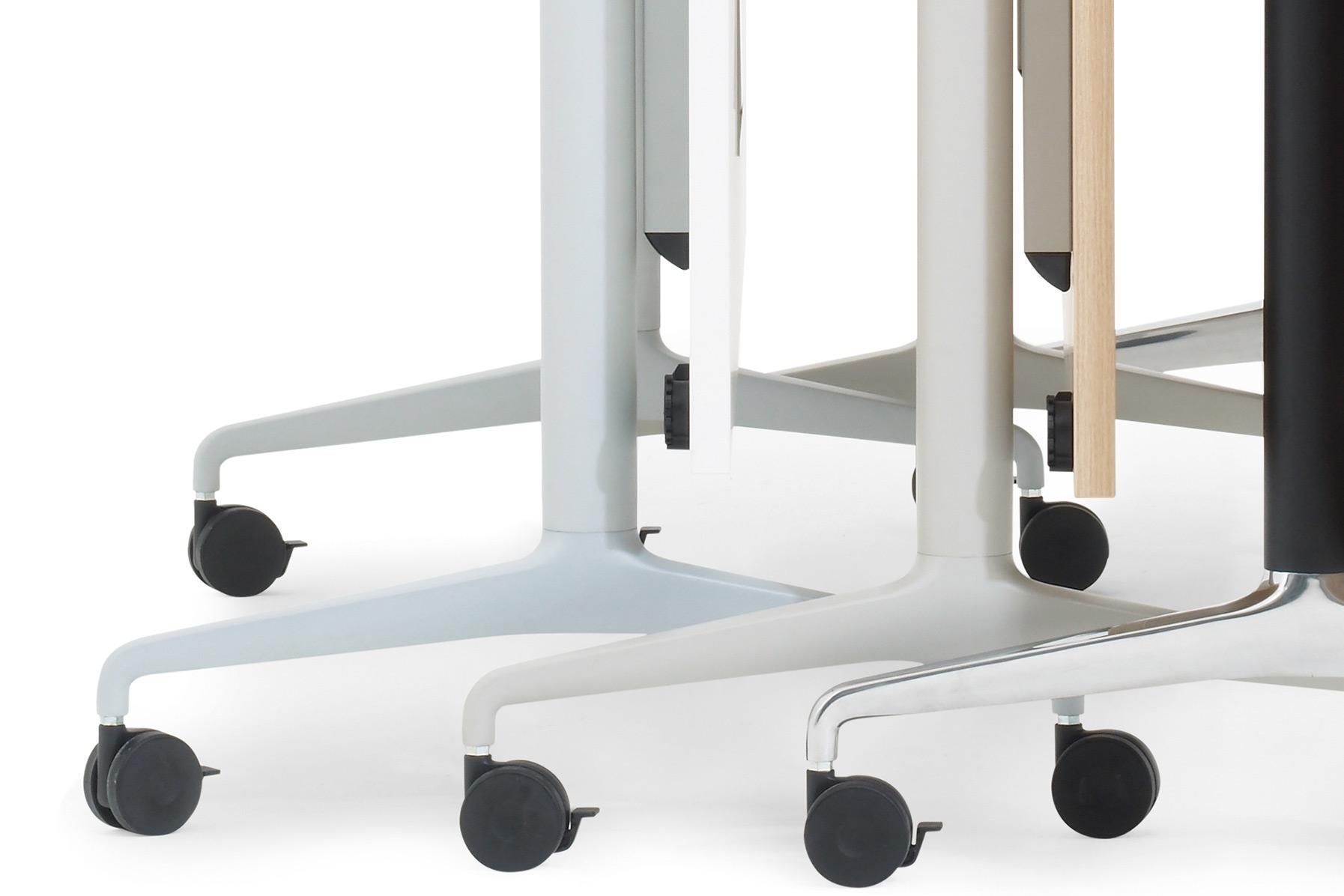

Legs: Leg consists of a cast aluminium ski with steel column and frame, Industrial Silver.
300mm from the end of the table available at no additional cost.
Feet: 2 x Black, lockable castors and 2 x Black standard free-rolling castors.
Leg Positions: Standard position 100mm from the end of the table.
Optional inset leg position 300mm from the end of the table available at no additional cost.
AC-06 is only available with inset legs.
On AC-13 to AC-24 legs are supplied in inset position as standard.
Top Finish: Table tops available in melamine, laminate and veneer finishes. Tops are pressed on 25mm MDF board.
Grain Direction: All veneers are straight grain. Veneer direction runs the length of the table.

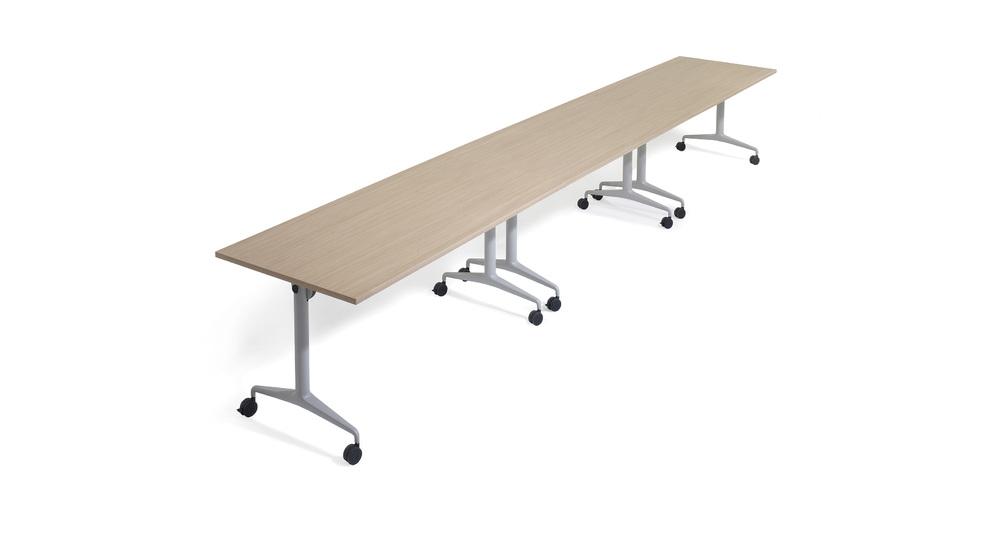

Linking: Square edge linking includes four Black nylon, rotating arms to link tables.
Frame: Finished in Industrial Silver I Frame as standard.
Table Top Finishes: Melamine – Franklin Walnut, Straight Grain Oak, Stone Oak, White Coastland, Beech, Graphite, White or Grey.
Laminate Wood Grain – White Fleetwood, Natural Davos, Hamilton Oak, Black Oak, Thermo Oak, Truffle Brown, Sage Green, Agave Green, Fir Green or Baltic Blue.
Laminate Fenix – 0720 Nero Ingo, 0724 Grigio Bromo, 0718 Grigio Londra, 0725 Grigio Efeso, 0032 Bianco Kos, 0751 Rosso Jaipur, 0789 Rosso Namib, 0791 Giallo Evora, 0754 Blu Fes or 0750 Verde Comodoro.
Veneer – Beech, Maple, Oak, Cherry or Walnut.
Optional Upcharges
Legs: Available in powder coated White as an upcharge.

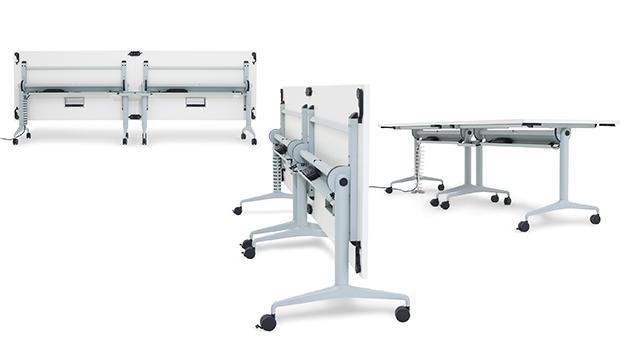

Cable Tray: Run the length of the under frame and simply hang in position from the beam. No fixings are required. Two sizes of cable tray are available for each table top size depending on the position of the legs.
Cable Clips: Black plastic cable clips attach to the beam of the table to allow simple securing of cabling.

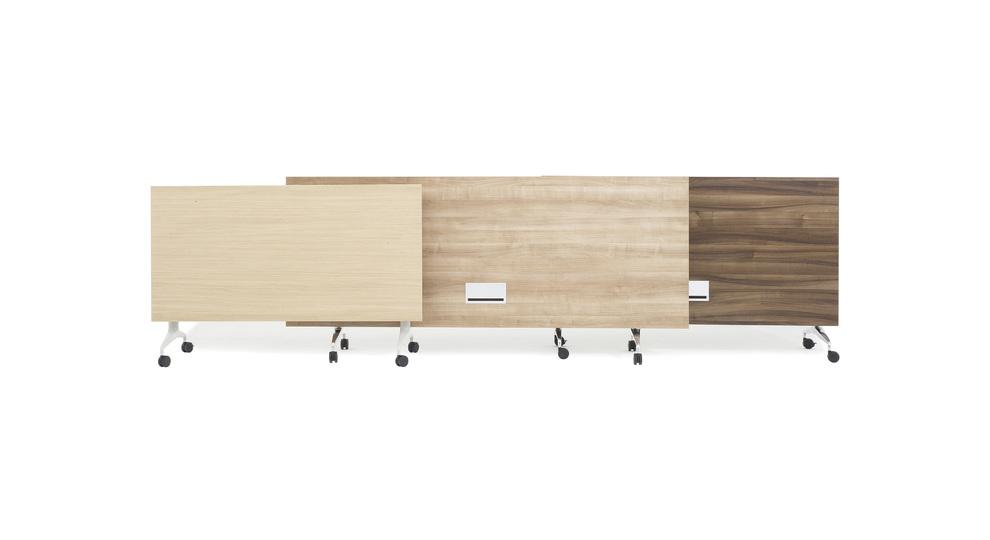

Cable Bridge: Supports cables from on cable tray to another when tables are linked together. The small cable bridge is used with standard leg position and the large cable bridge is used when inset legs are specified.
Cable Tray and Cable Tray Bridge: Powder coated steel in Industrial Silver or Black.
Modesty Panel: Fixes into and runs the length of the under frame. The panel is 300mm in height, frosted plastic. Veneer modesty panels are also available.
Frame:
White or Black I Frame.
Black Frame and Column with Polished Ski, Black Frame, Chrome Column and Polished Ski.
Edge Details: Black ABS Edge.
Cable Tray: Available as an up-charge or Cable Tray on Inset Legs.
Flap:
Standard Hinged Aluminium Flap,
Long Hinged Aluminium Flap,
Melamine Flap,
Long Melamine Flap,
Veneer Flap or
Long Veneer Flap.
Grommet: Silver Plastic Grommet or Sliver Aluminium Grommet.
Power: Power options available.
Power Box: Black Obvio Power Box (empty).
Modesty Panel: Standard Modesty Panel or Modesty Panel on Inset Legs.
Accessories:
Cable Tray Bridge Small (standard leg position).
Cable Tray Bridge Large (inset leg position).
Beam Mounted Cable Clips (set of 6).
Leg Cable Risers.
Fabric Cable Risers.
Umbilical Cable Risers (clear).
N.B two sizes of modesty panels available for each rectangular top size, de-pending on the position of the legs, standard or inset.
When specifying power units in the ‘to rear’ position, a modesty panel cannot be fitted.
